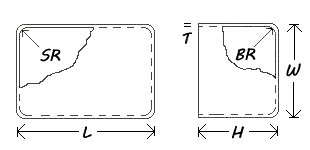

* All Dimensions in Inches
* L, W measured at Closed End of Enclosure
Rectangle Metal Enclosures
| NORPIN PART NUMBER |
OUTSIDE WIDTH |
OUTSIDE LENGTH |
MAXIMUM HEIGHT |
BOTTOM RADIUS |
SIDE RADIUS |
MATERIAL THICKNESS |
|---|---|---|---|---|---|---|
| NR020.5-103.5A-XXX/CU | 0.641in 16.2814mm |
3.234in 82.1436mm |
0.750in 19.05mm |
0.060in 1.524mm |
0.060in 1.524mm |
0.010in 0.254mm |
| NRS025-028-SP | 0.782in 19.8628mm |
0.822in 20.8788mm |
0.750in 19.05mm |
0.032in 0.8128mm |
0.032in 0.8128mm |
0.020in 0.508mm |
| NR026-209A-XXX/AL | 0.812in 20.6248mm |
2.281in 57.9374mm |
0.750in 19.05mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.032in 0.8128mm |
| NR026-209B-XXX/AL | 0.812in 20.6248mm |
2.281in 57.9374mm |
0.750in 19.05mm |
0.156in 3.9624mm |
0.093in 2.3622mm |
0.032in 0.8128mm |
| NR029-205.5A-XXX/AL | 0.885in 22.479mm |
2.160in 54.864mm |
1.188in 30.1752mm |
0.620in 15.748mm |
0.156in 3.9624mm |
0.020in 0.508mm |
| NR28.6-109.1A-XXX/AL | 0.893in 22.6822mm |
1.284in 32.6136mm |
0.875in 22.225mm |
0.062in 1.5748mm |
0.109in 2.7686mm |
0.020in 0.508mm |
| NR029-121A-XXX/AL | 0.906in 23.0124mm |
1.656in 42.0624mm |
1.000in 25.4mm |
0.156in 3.9624mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR029-205.5A-XXX/AL | 0.906in 23.0124mm |
2.170in 55.118mm |
2.625in 66.675mm |
0.063in 1.6002mm |
0.156in 3.9624mm |
0.020in 0.508mm |
| NR031.5-208A-XXX/AL | 0.968in 24.5872mm |
2.250in 57.15mm |
0.625in 15.875mm |
0.063in 1.6002mm |
0.156in 3.9624mm |
0.020in 0.508mm |
| NR031-329.5A-XXX/AL | 0.968in 24.5872mm |
3.921in 99.5934mm |
0.547in 13.8938mm |
0.040in 1.016mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR031.5-210.5A-XXX/AL | 0.984in 24.9936mm |
2.320in 58.928mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR031.5-216A-XXX/AL | 0.984in 24.9936mm |
2.500in 63.5mm |
2.060in 52.324mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.020in 0.508mm |
| NR100-200A-XXX/AL | 1.000in 25.4mm |
2.000in 50.8mm |
1.000in 25.4mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR100-200B-XXX/AL | 1.000in 25.4mm |
2.000in 50.8mm |
1.000in 25.4mm |
0.250in 6.35mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR100-224A-XXX/AL | 1.000in 25.4mm |
2.750in 69.85mm |
1.000in 25.4mm |
0.125in 3.175mm |
0.219in 5.5626mm |
0.040in 1.016mm |
| NR102-108A-XXX/AL | 1.053in 26.7462mm |
1.245in 31.623mm |
1.000in 25.4mm |
0.156in 3.9624mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR102-202A-XXX/AL | 1.062in 26.9748mm |
2.062in 52.3748mm |
2.281in 57.9374mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR102.6-129A-XXX/ | 1.080in 27.432mm |
1.906in 48.4124mm |
1.000in 25.4mm |
0.125in 3.175mm |
0.000in 0mm |
0.032in 0.8128mm |
| NR104-224A-XXX/AL | 1.125in 28.575mm |
2.750in 69.85mm |
1.000in 25.4mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR104-324A-XXX/AL | 1.125in 28.575mm |
3.750in 95.25mm |
4.125in 104.775mm |
0.188in 4.7752mm |
0.218in 5.5372mm |
0.040in 1.016mm |
| NR104-324A-XXX/AL | 1.125in 28.575mm |
3.750in 95.25mm |
4.500in 114.3mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR104.5-105.5A-XXX/BR | 1.148in 29.1592mm |
1.178in 29.9212mm |
0.750in 19.05mm |
0.093in 2.3622mm |
0.078in 1.9812mm |
0.020in 0.508mm |
| NR104.5-200A-XXX/AL | 1.148in 29.1592mm |
2.000in 50.8mm |
1.000in 25.4mm |
0.063in 1.6002mm |
0.090in 2.286mm |
0.040in 1.016mm |
| NR106-124A-XXX/AL | 1.187in 30.1498mm |
1.750in 44.45mm |
1.188in 30.1752mm |
0.094in 2.3876mm |
0.094in 2.3876mm |
0.040in 1.016mm |
| NR106-306A-XXX/AL | 1.187in 30.1498mm |
3.187in 80.9498mm |
1.125in 28.575mm |
0.094in 2.3876mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR107-208A-XXX/AL | 1.218in 30.9372mm |
2.250in 57.15mm |
0.875in 22.225mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.020in 0.508mm |
| NR107.5-422A-XXX/AL | 1.234in 31.3436mm |
4.687in 119.0498mm |
1.125in 28.575mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR108-116A-XXX/AL | 1.250in 31.75mm |
1.500in 38.1mm |
2.750in 69.85mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR108-124A-XXX/AL | 1.250in 31.75mm |
1.750in 44.45mm |
1.000in 25.4mm |
0.094in 2.3876mm |
0.094in 2.3876mm |
0.020in 0.508mm |
| NR108-200A-XXX/AL | 1.250in 31.75mm |
2.000in 50.8mm |
1.375in 34.925mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR108-220A-XXX/AL | 1.250in 31.75mm |
2.625in 66.675mm |
1.125in 28.575mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR108.5-308.5C-XXX/AL | 1.260in 32.004mm |
3.265in 82.931mm |
0.312in 7.9248mm |
0.030in 0.762mm |
0.171in 4.3434mm |
0.032in 0.8128mm |
| NR110-200-XXX/AL | 1.312in 33.3248mm |
2.000in 50.8mm |
1.000in 25.4mm |
0.093in 2.3622mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR110-302A-XXX/AL | 1.312in 33.3248mm |
3.062in 77.7748mm |
1.250in 31.75mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR110-308A-XXX/AL | 1.312in 33.3248mm |
3.250in 82.55mm |
0.875in 22.225mm |
0.062in 1.5748mm |
0.125in 3.175mm |
0.020in 0.508mm |
| NR110-430.2A-XXX/AL | 1.312in 33.3248mm |
4.966in 126.1364mm |
1.312in 33.3248mm |
0.190in 4.826mm |
0.190in 4.826mm |
0.040in 1.016mm |
| NR111.7-304.7A-XXX/AL | 1.365in 34.671mm |
3.146in 79.9084mm |
4.250in 107.95mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.032in 0.8128mm |
| NR112-500A-XXX/AL | 1.375in 34.925mm |
5.000in 127mm |
1.500in 38.1mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR112-504A-XXX/AL | 1.375in 34.925mm |
5.125in 130.175mm |
1.750in 44.45mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR112-504B-XXX/AL | 1.375in 34.925mm |
5.125in 130.175mm |
1.750in 44.45mm |
0.250in 6.35mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR112.8-312.8-XXX/AL | 1.400in 35.56mm |
3.400in 86.36mm |
0.800in 20.32mm |
0.000in 0mm |
0.000in 0mm |
0.032in 0.8128mm |
| NR112.8-312.9A-XXX/AL | 1.400in 35.56mm |
3.400in 86.36mm |
1.125in 28.575mm |
0.093in 2.3622mm |
0.170in 4.318mm |
0.032in 0.8128mm |
| NRS113-314A | 1.415in 35.941mm |
3.450in 87.63mm |
0.500in 12.7mm |
0.032in 0.8128mm |
0.063in 1.6002mm |
0.032in 0.8128mm |
| NR114-200A-XXX/AL | 1.437in 36.4998mm |
2.000in 50.8mm |
0.000in 0mm |
0.000in 0mm |
0.000in 0mm |
0.000in 0mm |
| NR114-214A-XXX/AL | 1.437in 36.4998mm |
2.437in 61.8998mm |
1.250in 31.75mm |
0.094in 2.3876mm |
0.094in 2.3876mm |
0.040in 1.016mm |
| NR114-504A-XXX/AL | 1.437in 36.4998mm |
5.125in 130.175mm |
1.250in 31.75mm |
0.156in 3.9624mm |
0.093in 2.3622mm |
0.040in 1.016mm |
| NR115-700A-XX/AL | 1.468in 37.2872mm |
7.000in 177.8mm |
1.000in 25.4mm |
0.094in 2.3876mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR116-127.5A-XXX/AL | 1.500in 38.1mm |
1.860in 47.244mm |
1.375in 34.925mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR116-200A-XXX/AL | 1.500in 38.1mm |
2.000in 50.8mm |
1.500in 38.1mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR116-200B-XXX/AL | 1.500in 38.1mm |
2.000in 50.8mm |
1.500in 38.1mm |
0.250in 6.35mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR116-306.4A-XXX/AL | 1.500in 38.1mm |
3.200in 81.28mm |
1.500in 38.1mm |
0.210in 5.334mm |
0.210in 5.334mm |
0.040in 1.016mm |
| NR116-316A-XXX/AL | 1.500in 38.1mm |
3.500in 88.9mm |
1.500in 38.1mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR116-324A-XXX/AL | 1.500in 38.1mm |
3.750in 95.25mm |
1.500in 38.1mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR117.5-511A-XXX/AL | 1.545in 39.243mm |
5.343in 135.7122mm |
1.437in 36.4998mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR119.5-319.5A-XXX/AL | 1.610in 40.894mm |
3.610in 91.694mm |
1.250in 31.75mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.040in 1.016mm |
| NR119.5-319.5C-XXX/AL | 1.610in 40.894mm |
3.610in 91.694mm |
1.610in 40.894mm |
0.078in 1.9812mm |
0.078in 1.9812mm |
0.063in 1.6002mm |
| NR120-200A-XXX/BR | 1.625in 41.275mm |
2.000in 50.8mm |
1.500in 38.1mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.025in 0.635mm |
| NR120-220A-XXX/AL | 1.625in 41.275mm |
2.625in 66.675mm |
1.625in 41.275mm |
0.078in 1.9812mm |
0.078in 1.9812mm |
0.063in 1.6002mm |
| NR120-224A-XX/AL | 1.625in 41.275mm |
2.750in 69.85mm |
1.625in 41.275mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR120-224C-XXX/AL | 1.625in 41.275mm |
2.750in 69.85mm |
1.625in 41.275mm |
0.080in 2.032mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR120-408.5B-XXX/AL | 1.625in 41.275mm |
4.265in 108.331mm |
1.000in 25.4mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR424-1024B | 1.625in 41.275mm |
4.625in 117.475mm |
4.750in 120.65mm |
0.188in 4.7752mm |
0.375in 9.525mm |
0.063in 1.6002mm |
| NR120-524A-XXX/AL | 1.625in 41.275mm |
5.750in 146.05mm |
1.625in 41.275mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR120-819.5S-XXX/AL | 1.625in 41.275mm |
8.609in 218.6686mm |
0.750in 19.05mm |
0.090in 2.286mm |
0.812in 20.6248mm |
0.050in 1.27mm |
| NR120-128A-XXX/BR | 1.750in 44.45mm |
1.875in 47.625mm |
1.687in 42.8498mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.032in 0.8128mm |
| NR124-200A-XXX/AL | 1.750in 44.45mm |
2.000in 50.8mm |
1.000in 25.4mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR124-200B-XXX/AL | 1.750in 44.45mm |
2.000in 50.8mm |
1.750in 44.45mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR124-216A-XXX/AL | 1.750in 44.45mm |
2.500in 63.5mm |
1.750in 44.45mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR124-216B-XXX/AL | 1.750in 44.45mm |
2.500in 63.5mm |
1.750in 44.45mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR124-216C-XXX/AL | 1.750in 44.45mm |
2.500in 63.5mm |
1.625in 41.275mm |
0.156in 3.9624mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR124-216D-XXX/AL | 1.750in 44.45mm |
2.500in 63.5mm |
1.750in 44.45mm |
0.312in 7.9248mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR124-224A-XXX/AL | 1.750in 44.45mm |
2.750in 69.85mm |
2.250in 57.15mm |
0.312in 7.9248mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR124-224B-XXX/AL | 1.750in 44.45mm |
2.750in 69.85mm |
2.250in 57.15mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR124-300A-XXX/AL | 1.750in 44.45mm |
3.000in 76.2mm |
1.625in 41.275mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR124-300B-XXX/AL | 1.750in 44.45mm |
3.000in 76.2mm |
1.625in 41.275mm |
0.188in 4.7752mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR124-300C-XXX/AL | 1.750in 44.45mm |
3.000in 76.2mm |
1.500in 38.1mm |
0.117in 2.9718mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR124-500A-XXX/AL | 1.750in 44.45mm |
5.000in 127mm |
4.000in 101.6mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR124-500A-XXX/AL | 1.750in 44.45mm |
5.000in 127mm |
1.750in 44.45mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR125-206C-XXX/AL | 1.781in 45.2374mm |
2.187in 55.5498mm |
1.625in 41.275mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.090in 2.286mm |
| NR125.5-205.5A-XXX/AL | 1.793in 45.5422mm |
2.168in 55.0672mm |
1.625in 41.275mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.090in 2.286mm |
| NR126-305A-XXXAL | 1.812in 46.0248mm |
3.156in 80.1624mm |
0.656in 16.6624mm |
0.062in 1.5748mm |
0.125in 3.175mm |
0.020in 0.508mm |
| NR127-307A-XXX/AL | 1.843in 46.8122mm |
3.218in 81.7372mm |
4.000in 101.6mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR128-409A-XXX/AL | 1.875in 47.625mm |
4.281in 108.7374mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.032in 0.8128mm |
| NR128-410A-XXX/AL | 1.875in 47.625mm |
4.312in 109.5248mm |
5.000in 127mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR128-410A-XXX/AL | 1.875in 47.625mm |
4.312in 109.5248mm |
1.750in 44.45mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR128.5-216A-XXX/AL | 1.890in 48.006mm |
2.500in 63.5mm |
1.750in 44.45mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.032in 0.8128mm |
| NR129-313A-XXX/AL | 1.906in 48.4124mm |
3.406in 86.5124mm |
1.875in 47.625mm |
0.125in 3.175mm |
0.218in 5.5372mm |
0.050in 1.27mm |
| NR130-206C-XXX/CRS | 1.937in 49.1998mm |
2.187in 55.5498mm |
0.500in 12.7mm |
0.093in 2.3622mm |
0.218in 5.5372mm |
0.044in 1.1176mm |
| NR130-231A-XXX/AL | 1.937in 49.1998mm |
2.968in 75.3872mm |
1.250in 31.75mm |
0.062in 1.5748mm |
0.109in 2.7686mm |
0.032in 0.8128mm |
| NR130-330A-XXX/AL | 1.937in 49.1998mm |
3.937in 99.9998mm |
2.031in 51.5874mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR130-617A-XXX/AL | 1.937in 49.1998mm |
6.531in 165.8874mm |
1.875in 47.625mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR131-317.5A-XXX/AL | 1.968in 49.9872mm |
3.547in 90.0938mm |
1.875in 47.625mm |
0.062in 1.5748mm |
0.250in 6.35mm |
0.020in 0.508mm |
| NR200-208A-XXX/AL | 2.000in 50.8mm |
2.250in 57.15mm |
1.812in 46.0248mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR200-209A-XXX/AL | 2.000in 50.8mm |
2.281in 57.9374mm |
1.875in 47.625mm |
0.125in 3.175mm |
0.218in 5.5372mm |
0.032in 0.8128mm |
| NR200-210A-XXX/AL | 2.000in 50.8mm |
2.312in 58.7248mm |
4.875in 123.825mm |
0.062in 1.5748mm |
0.375in 9.525mm |
0.032in 0.8128mm |
| NR200-214A-XXX/AL | 2.000in 50.8mm |
2.437in 61.8998mm |
2.000in 50.8mm |
0.172in 4.3688mm |
0.172in 4.3688mm |
0.032in 0.8128mm |
| NR200-216A-XXX/AL | 2.000in 50.8mm |
2.500in 63.5mm |
2.250in 57.15mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR200-216B-XXX/AL | 2.000in 50.8mm |
2.500in 63.5mm |
2.250in 57.15mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR200-230A-XXX/AL | 2.000in 50.8mm |
2.937in 74.5998mm |
2.000in 50.8mm |
0.125in 3.175mm |
0.172in 4.3688mm |
0.040in 1.016mm |
| NR200-300A-XXX/AL | 2.000in 50.8mm |
3.000in 76.2mm |
2.312in 58.7248mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR200-300B-XXX/AL | 2.000in 50.8mm |
3.000in 76.2mm |
2.312in 58.7248mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR200-300C-XXX/AL | 2.000in 50.8mm |
3.000in 76.2mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR200-300D-XXX/AL | 2.000in 50.8mm |
3.000in 76.2mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.234in 5.9436mm |
0.063in 1.6002mm |
| NR200-300E-XXX/AL | 2.000in 50.8mm |
3.000in 76.2mm |
1.375in 34.925mm |
0.125in 3.175mm |
0.213in 5.4102mm |
0.020in 0.508mm |
| NR200-316A-XXX/AL | 2.000in 50.8mm |
3.500in 88.9mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR200-316B-XXX/AL | 2.000in 50.8mm |
3.500in 88.9mm |
2.500in 63.5mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR200-316C-XXX/AL | 2.000in 50.8mm |
3.500in 88.9mm |
1.750in 44.45mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR200-400A-XXX/AL | 2.000in 50.8mm |
4.000in 101.6mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR200-400B-XXX/AL | 2.000in 50.8mm |
4.000in 101.6mm |
2.500in 63.5mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR200-400C-XXX/AL | 2.000in 50.8mm |
4.000in 101.6mm |
2.000in 50.8mm |
0.125in 3.175mm |
0.156in 3.9624mm |
0.063in 1.6002mm |
| NR200-400E-XXX/AL | 2.000in 50.8mm |
4.000in 101.6mm |
3.750in 95.25mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR200-425C-XXX/AL | 2.000in 50.8mm |
4.781in 121.4374mm |
0.375in 9.525mm |
0.031in 0.7874mm |
0.094in 2.3876mm |
0.032in 0.8128mm |
| NR200-516A-XXX/AL | 2.000in 50.8mm |
5.500in 139.7mm |
2.250in 57.15mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.050in 1.27mm |
| NR200-516B-XXX/AL | 2.000in 50.8mm |
5.500in 139.7mm |
2.250in 57.15mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.050in 1.27mm |
| NR200.5-309.5-XXX/AL | 2.016in 51.2064mm |
3.297in 83.7438mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.032in 0.8128mm |
| NR202.5-328S-XXX/AL | 2.078in 52.7812mm |
3.875in 98.425mm |
0.500in 12.7mm |
0.040in 1.016mm |
0.063in 1.6002mm |
0.040in 1.016mm |
| NR202.5-430.5A-XXX/AL | 2.078in 52.7812mm |
4.953in 125.8062mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.190in 4.826mm |
0.040in 1.016mm |
| NR204-321A-XXX/AL | 2.125in 53.975mm |
3.656in 92.8624mm |
2.000in 50.8mm |
0.190in 4.826mm |
0.440in 11.176mm |
0.050in 1.27mm |
| NR204-404A-XXX/AL | 2.125in 53.975mm |
4.125in 104.775mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR204-408B-XXX/AL | 2.125in 53.975mm |
4.250in 107.95mm |
2.250in 57.15mm |
0.250in 6.35mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR204-500A-XXX/AL | 2.125in 53.975mm |
5.000in 127mm |
2.000in 50.8mm |
0.125in 3.175mm |
0.220in 5.588mm |
0.032in 0.8128mm |
| NR204-824A-XXX/AL | 2.125in 53.975mm |
8.750in 222.25mm |
3.562in 90.4748mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.050in 1.27mm |
| NR204-824B-XXX/AL | 2.125in 53.975mm |
8.750in 222.25mm |
3.562in 90.4748mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.050in 1.27mm |
| NR204.5-228.5A-XXX/AL | 2.135in 54.229mm |
2.880in 73.152mm |
2.000in 50.8mm |
0.320in 8.128mm |
0.320in 8.128mm |
0.032in 0.8128mm |
| NR204.5-623.5A-XXX/AL | 2.141in 54.3814mm |
6.734in 171.0436mm |
0.375in 9.525mm |
0.031in 0.7874mm |
0.290in 7.366mm |
0.032in 0.8128mm |
| NR205-216.5A-XXX/AL | 2.156in 54.7624mm |
2.516in 63.9064mm |
3.203in 81.3562mm |
0.375in 9.525mm |
0.271in 6.8834mm |
0.032in 0.8128mm |
| NR205.5-229C-XXX/AL | 2.177in 55.2958mm |
2.906in 73.8124mm |
0.375in 9.525mm |
0.040in 1.016mm |
0.093in 2.3622mm |
0.050in 1.27mm |
| NR206-228B-XXX/AL | 2.187in 55.5498mm |
2.875in 73.025mm |
2.250in 57.15mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR206-229C-XXX/AL | 2.187in 55.5498mm |
2.906in 73.8124mm |
0.500in 12.7mm |
0.040in 1.016mm |
0.093in 2.3622mm |
0.050in 1.27mm |
| NR206-420A-XXX/AL | 2.187in 55.5498mm |
4.625in 117.475mm |
2.250in 57.15mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR207.6-322.3A-XXX/AL | 2.237in 56.8198mm |
3.696in 93.8784mm |
3.093in 78.5622mm |
0.090in 2.286mm |
0.156in 3.9624mm |
0.040in 1.016mm |
| NR207.5-211.5A-XXX/AL | 2.240in 56.896mm |
2.350in 59.69mm |
2.000in 50.8mm |
0.625in 15.875mm |
0.240in 6.096mm |
0.032in 0.8128mm |
| NR208-300A-XXX/AL | 2.250in 57.15mm |
3.000in 76.2mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR208-300B-XXX/AL | 2.250in 57.15mm |
3.000in 76.2mm |
2.500in 63.5mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR208-300C-XXX/AL | 2.250in 57.15mm |
3.000in 76.2mm |
5.375in 136.525mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR208-308A-XXX/AL | 2.250in 57.15mm |
3.250in 82.55mm |
2.000in 50.8mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR208-308B-XXX/AL | 2.250in 57.15mm |
3.250in 82.55mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR208-310A-XXX/AL | 2.250in 57.15mm |
3.312in 84.1248mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR208-324A-XX/AL | 2.250in 57.15mm |
3.750in 95.25mm |
2.375in 60.325mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR208-324A-XXX/BR | 2.250in 57.15mm |
3.750in 95.25mm |
1.750in 44.45mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR208-324B-XXX/AL | 2.250in 57.15mm |
3.750in 95.25mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR208-324C-XXX/AL | 2.250in 57.15mm |
3.750in 95.25mm |
2.250in 57.15mm |
0.219in 5.5626mm |
0.219in 5.5626mm |
0.032in 0.8128mm |
| NR208-504A-XXX/AL | 2.250in 57.15mm |
5.125in 130.175mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR208.5-308.5A-XXX/AL | 2.265in 57.531mm |
3.265in 82.931mm |
1.125in 28.575mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR209-313.5A-XXX/AL | 2.281in 57.9374mm |
3.421in 86.8934mm |
1.500in 38.1mm |
0.063in 1.6002mm |
0.094in 2.3876mm |
0.032in 0.8128mm |
| NR209-430A-XXX/AL | 2.281in 57.9374mm |
4.937in 125.3998mm |
2.250in 57.15mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR210-220A-XXX/AL | 2.312in 58.7248mm |
2.625in 66.675mm |
2.312in 58.7248mm |
0.078in 1.9812mm |
0.078in 1.9812mm |
0.063in 1.6002mm |
| NR210.3-400A-XXX/AL | 2.312in 58.7248mm |
4.000in 101.6mm |
6.234in 158.3436mm |
0.110in 2.794mm |
0.110in 2.794mm |
0.050in 1.27mm |
| NR210-412A-XXX/AL | 2.312in 58.7248mm |
4.375in 111.125mm |
2.250in 57.15mm |
0.094in 2.3876mm |
0.078in 1.9812mm |
0.040in 1.016mm |
| NR210.3-400A-XXX/AL | 2.320in 58.928mm |
4.000in 101.6mm |
4.750in 120.65mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.050in 1.27mm |
| NR210.5-602C-XXX/AL | 2.330in 59.182mm |
6.062in 153.9748mm |
1.500in 38.1mm |
0.062in 1.5748mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR212-224A-XXX/AL | 2.375in 60.325mm |
2.750in 69.85mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR212-224B-XXX/AL | 2.375in 60.325mm |
2.750in 69.85mm |
2.500in 63.5mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR212-308A-XXX/AL | 2.375in 60.325mm |
3.250in 82.55mm |
2.125in 53.975mm |
0.250in 6.35mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR212-308B-XXX/AL | 2.375in 60.325mm |
3.250in 82.55mm |
2.250in 57.15mm |
0.188in 4.7752mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR212-528A-XXX/AL | 2.375in 60.325mm |
5.875in 149.225mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR215-428A-XXX/AL | 2.468in 62.6872mm |
4.875in 123.825mm |
1.000in 25.4mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR215-500A-XXX/AL | 2.468in 62.6872mm |
5.000in 127mm |
4.500in 114.3mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR215-428S | 2.475in 62.865mm |
4.875in 123.825mm |
0.900in 22.86mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.040in 1.016mm |
| NR215.5-724SA-XXX/AL | 2.480in 62.992mm |
7.765in 197.231mm |
0.980in 24.892mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR215.5-301A-XXX/AL | 2.484in 63.0936mm |
3.031in 76.9874mm |
4.875in 123.825mm |
0.062in 1.5748mm |
0.250in 6.35mm |
0.032in 0.8128mm |
| NR215.5-431.5A-XXX/AL | 2.484in 63.0936mm |
4.985in 126.619mm |
2.125in 53.975mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.032in 0.8128mm |
| NR215.5-924A-XXX/AL | 2.484in 63.0936mm |
9.750in 247.65mm |
0.000in 0mm |
0.000in 0mm |
0.000in 0mm |
0.040in 1.016mm |
| NR216-300A-XXX/AL | 2.500in 63.5mm |
3.000in 76.2mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-300B-XXX/AL | 2.500in 63.5mm |
3.000in 76.2mm |
2.750in 69.85mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-316A-XXX/AL | 2.500in 63.5mm |
3.500in 88.9mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-316B-XXX/AL | 2.500in 63.5mm |
3.500in 88.9mm |
3.437in 87.2998mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-316C-XXX/AL | 2.500in 63.5mm |
3.500in 88.9mm |
2.500in 63.5mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-400A-XXX/AL | 2.500in 63.5mm |
4.000in 101.6mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR216-400B-XXX/AL | 2.500in 63.5mm |
4.000in 101.6mm |
3.250in 82.55mm |
0.375in 9.525mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR216-400C-XXX/AL | 2.500in 63.5mm |
4.000in 101.6mm |
4.375in 111.125mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-400D-XXX/AL | 2.500in 63.5mm |
4.000in 101.6mm |
2.375in 60.325mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-400C-XXX/AL | 2.500in 63.5mm |
4.000in 101.6mm |
2.375in 60.325mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR216-409A-XXX/AL | 2.500in 63.5mm |
4.281in 108.7374mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.032in 0.8128mm |
| NR216-418A-XXX/AL | 2.500in 63.5mm |
4.562in 115.8748mm |
1.750in 44.45mm |
0.093in 2.3622mm |
0.140in 3.556mm |
0.040in 1.016mm |
| NR216-418B-XXX/AL | 2.500in 63.5mm |
4.562in 115.8748mm |
2.593in 65.8622mm |
0.125in 3.175mm |
0.140in 3.556mm |
0.040in 1.016mm |
| NR216-500A-XXX/AL | 2.500in 63.5mm |
5.000in 127mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR216-500B-XXX/AL | 2.500in 63.5mm |
5.000in 127mm |
3.250in 82.55mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR216-500C-XXX/AL | 2.500in 63.5mm |
5.000in 127mm |
4.500in 114.3mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR216-600A-XXX/AL | 2.500in 63.5mm |
6.000in 152.4mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR216-600B-XXX/AL | 2.500in 63.5mm |
6.000in 152.4mm |
3.250in 82.55mm |
0.312in 7.9248mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR216-600C-XXX/AL | 2.500in 63.5mm |
6.000in 152.4mm |
2.250in 57.15mm |
0.250in 6.35mm |
0.270in 6.858mm |
0.032in 0.8128mm |
| NR216-600C-XXX/AL | 2.500in 63.5mm |
6.000in 152.4mm |
2.750in 69.85mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.032in 0.8128mm |
| NR216-616A-XXX/AL | 2.500in 63.5mm |
6.500in 165.1mm |
0.500in 12.7mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR216-1016A-XXX/AL | 2.500in 63.5mm |
10.500in 266.7mm |
1.437in 36.4998mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR216.5-400.5D-XXX/AL | 2.515in 63.881mm |
4.015in 101.981mm |
2.000in 50.8mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR217-423A-XXX/AL | 2.531in 64.2874mm |
4.718in 119.8372mm |
2.625in 66.675mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR217-423C-XXX/AL | 2.531in 64.2874mm |
4.718in 119.8372mm |
2.250in 57.15mm |
0.125in 3.175mm |
0.136in 3.4544mm |
0.050in 1.27mm |
| NR218-230A-XXX/BR | 2.562in 65.0748mm |
2.937in 74.5998mm |
0.656in 16.6624mm |
0.125in 3.175mm |
0.156in 3.9624mm |
0.032in 0.8128mm |
| NR218-919C-XXX/AL | 2.562in 65.0748mm |
9.593in 243.6622mm |
0.625in 15.875mm |
0.063in 1.6002mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR220-317A-XXX/AL | 2.625in 66.675mm |
3.531in 89.6874mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.210in 5.334mm |
0.050in 1.27mm |
| NR220-426A-XXX/AL | 2.625in 66.675mm |
4.812in 122.2248mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR220.5-224.5C-XXX/AL | 2.640in 67.056mm |
2.765in 70.231mm |
0.375in 9.525mm |
0.032in 0.8128mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR220.5-525A-XXX/AL | 2.640in 67.056mm |
5.781in 146.8374mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.032in 0.8128mm |
| NR222-422A-XXX/AL | 2.687in 68.2498mm |
4.687in 119.0498mm |
1.781in 45.2374mm |
0.110in 2.794mm |
0.110in 2.794mm |
0.063in 1.6002mm |
| NR222-723 | 2.687in 68.2498mm |
7.781in 197.6374mm |
2.000in 50.8mm |
0.000in 0mm |
0.000in 0mm |
0.032in 0.8128mm |
| NR222-800A-XXX/AL | 2.687in 68.2498mm |
8.000in 203.2mm |
2.500in 63.5mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR222-1030A-XXX/AL | 2.687in 68.2498mm |
10.937in 277.7998mm |
2.000in 50.8mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR223-425C-XXX/AL | 2.718in 69.0372mm |
4.781in 121.4374mm |
0.375in 9.525mm |
0.031in 0.7874mm |
0.312in 7.9248mm |
0.032in 0.8128mm |
| NR223.5-619.5C-XXX/AL | 2.734in 69.4436mm |
6.609in 167.8686mm |
0.500in 12.7mm |
0.032in 0.8128mm |
0.344in 8.7376mm |
0.050in 1.27mm |
| NR224-300A-XXX/AL | 2.750in 69.85mm |
3.000in 76.2mm |
2.750in 69.85mm |
0.250in 6.35mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR224-300B-XXX/AL | 2.750in 69.85mm |
3.000in 76.2mm |
2.750in 69.85mm |
0.375in 9.525mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR224-308A-XXX/AL | 2.750in 69.85mm |
3.250in 82.55mm |
2.250in 57.15mm |
0.093in 2.3622mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR224-322A-XXX/AL | 2.750in 69.85mm |
3.687in 93.6498mm |
2.250in 57.15mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR224-400A-XXX/AL | 2.750in 69.85mm |
4.000in 101.6mm |
1.500in 38.1mm |
0.188in 4.7752mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR224-416A-XXX/AL | 2.750in 69.85mm |
4.500in 114.3mm |
1.500in 38.1mm |
0.188in 4.7752mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR224.5-500.5A-XXX/AL | 2.765in 70.231mm |
5.015in 127.381mm |
2.250in 57.15mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.032in 0.8128mm |
| NR227-609.5 | 2.843in 72.2122mm |
6.296in 159.9184mm |
2.000in 50.8mm |
0.188in 4.7752mm |
0.156in 3.9624mm |
0.032in 0.8128mm |
| NR227-607.5A-XXX/AL | 2.844in 72.2376mm |
6.234in 158.3436mm |
1.340in 34.036mm |
0.188in 4.7752mm |
0.150in 3.81mm |
0.032in 0.8128mm |
| NR228.7-420.5A | 2.897in 73.5838mm |
4.643in 117.9322mm |
0.500in 12.7mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR229-622A-XXX/AL | 2.906in 73.8124mm |
6.687in 169.8498mm |
2.875in 73.025mm |
0.156in 3.9624mm |
0.156in 3.9624mm |
0.032in 0.8128mm |
| NR229.5-506.8 | 2.920in 74.168mm |
5.212in 132.3848mm |
0.500in 12.7mm |
0.093in 2.3622mm |
0.218in 5.5372mm |
0.032in 0.8128mm |
| NR231.4-508.7 | 2.980in 75.692mm |
5.272in 133.9088mm |
1.750in 44.45mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.032in 0.8128mm |
| NR300-316A-XXX/AL | 3.000in 76.2mm |
3.500in 88.9mm |
3.125in 79.375mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-316B-XXX/AL | 3.000in 76.2mm |
3.500in 88.9mm |
3.250in 82.55mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-316D-XXX/AL | 3.000in 76.2mm |
3.500in 88.9mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.261in 6.6294mm |
0.050in 1.27mm |
| NR300-324A-XXX/AL | 3.000in 76.2mm |
3.750in 95.25mm |
1.000in 25.4mm |
0.156in 3.9624mm |
0.203in 5.1562mm |
0.040in 1.016mm |
| NR300-400A-XXX/AL | 3.000in 76.2mm |
4.000in 101.6mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-400B-XXX/AL | 3.000in 76.2mm |
4.000in 101.6mm |
3.250in 82.55mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-400C-XXX/AL | 3.000in 76.2mm |
4.000in 101.6mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR300-400D-XXX/AL | 3.000in 76.2mm |
4.000in 101.6mm |
1.000in 25.4mm |
0.250in 6.35mm |
0.287in 7.2898mm |
0.020in 0.508mm |
| NR300-400E-XXX/AL | 3.000in 76.2mm |
4.000in 101.6mm |
2.500in 63.5mm |
0.125in 3.175mm |
0.136in 3.4544mm |
0.050in 1.27mm |
| NR300-400-SP | 3.000in 76.2mm |
4.000in 101.6mm |
1.500in 38.1mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR300-408A-XXX/AL | 3.000in 76.2mm |
4.250in 107.95mm |
3.000in 76.2mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR300-408C-XXX/AL | 3.000in 76.2mm |
4.250in 107.95mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.140in 3.556mm |
0.063in 1.6002mm |
| NR300-408D-XXX/AL | 3.000in 76.2mm |
4.250in 107.95mm |
2.500in 63.5mm |
0.125in 3.175mm |
0.140in 3.556mm |
0.063in 1.6002mm |
| NR300-416A-XXX/AL | 3.000in 76.2mm |
4.500in 114.3mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR300-416B-XXX/AL | 3.000in 76.2mm |
4.500in 114.3mm |
3.000in 76.2mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR300-424A-XXX/AL | 3.000in 76.2mm |
4.750in 120.65mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.290in 7.366mm |
0.050in 1.27mm |
| NR300-424C-XXX/AL | 3.000in 76.2mm |
4.750in 120.65mm |
0.500in 12.7mm |
0.060in 1.524mm |
0.290in 7.366mm |
0.050in 1.27mm |
| NR300-424D-XXX/AL | 3.000in 76.2mm |
4.750in 120.65mm |
3.000in 76.2mm |
0.156in 3.9624mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR300-500A-XXX/AL | 3.000in 76.2mm |
5.000in 127mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-500B-XXX/AL | 3.000in 76.2mm |
5.000in 127mm |
3.500in 88.9mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-500C-XXX/AL | 3.000in 76.2mm |
5.000in 127mm |
1.625in 41.275mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-500D-XXX/AL | 3.000in 76.2mm |
5.000in 127mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR300-508C-XXX/AL | 3.000in 76.2mm |
5.250in 133.35mm |
1.750in 44.45mm |
0.172in 4.3688mm |
0.172in 4.3688mm |
0.040in 1.016mm |
| NR300-600A-XXX/AL | 3.000in 76.2mm |
6.000in 152.4mm |
3.125in 79.375mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-600B-XXX/AL | 3.000in 76.2mm |
6.000in 152.4mm |
3.125in 79.375mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR300-600D-XXX/AL | 3.000in 76.2mm |
6.000in 152.4mm |
2.250in 57.15mm |
0.375in 9.525mm |
0.375in 9.525mm |
0.125in 3.175mm |
| NR300-616A-XXX/AL | 3.000in 76.2mm |
6.500in 165.1mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR300-700A-XXX/AL | 3.000in 76.2mm |
7.000in 177.8mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR300-716B-XXX/AL | 3.000in 76.2mm |
7.500in 190.5mm |
3.000in 76.2mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR300-800A-XXX/AL | 3.000in 76.2mm |
8.000in 203.2mm |
2.375in 60.325mm |
0.375in 9.525mm |
0.375in 9.525mm |
0.125in 3.175mm |
| NR300-1424A | 3.000in 76.2mm |
14.750in 374.65mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR301-722A-XXX/AL | 3.031in 76.9874mm |
7.687in 195.2498mm |
2.500in 63.5mm |
0.062in 1.5748mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR301.5-331A-XXX/CU | 3.046in 77.3684mm |
3.968in 100.7872mm |
3.000in 76.2mm |
0.312in 7.9248mm |
0.156in 3.9624mm |
0.040in 1.016mm |
| NR302-402A-XXX/AL | 3.060in 77.724mm |
4.060in 103.124mm |
6.234in 158.3436mm |
0.140in 3.556mm |
0.140in 3.556mm |
0.040in 1.016mm |
| NR302-402A-XXX/AL | 3.062in 77.7748mm |
4.062in 103.1748mm |
6.125in 155.575mm |
0.140in 3.556mm |
0.140in 3.556mm |
0.040in 1.016mm |
| NR302-708A-XXX/AL | 3.062in 77.7748mm |
7.250in 184.15mm |
3.500in 88.9mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR302-708B-XXX/AL | 3.062in 77.7748mm |
7.250in 184.15mm |
3.875in 98.425mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR304-316A-XXX/AL | 3.125in 79.375mm |
3.500in 88.9mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR304-400A-XXX/AL | 3.125in 79.375mm |
4.000in 101.6mm |
3.500in 88.9mm |
0.090in 2.286mm |
0.090in 2.286mm |
0.063in 1.6002mm |
| NR304-508A-XXX/AL | 3.125in 79.375mm |
5.250in 133.35mm |
2.250in 57.15mm |
0.094in 2.3876mm |
0.188in 4.7752mm |
0.020in 0.508mm |
| NR304-628A-XXX/AL | 3.125in 79.375mm |
6.875in 174.625mm |
3.000in 76.2mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.090in 2.286mm |
| NR305.5-331A | 3.171in 80.5434mm |
3.968in 100.7872mm |
6.500in 165.1mm |
0.093in 2.3622mm |
0.063in 1.6002mm |
0.050in 1.27mm |
| NR306-306-ARINC | 3.187in 80.9498mm |
3.187in 80.9498mm |
7.500in 190.5mm |
0.125in 3.175mm |
0.062in 1.5748mm |
0.032in 0.8128mm |
| NR306.5-330.5-XXX/AL | 3.202in 81.3308mm |
3.952in 100.3808mm |
0.562in 14.2748mm |
0.031in 0.7874mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR308-408-XXX/AL | 3.250in 82.55mm |
4.250in 107.95mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR308-408-XXX/BR | 3.250in 82.55mm |
4.250in 107.95mm |
0.625in 15.875mm |
0.063in 1.6002mm |
0.281in 7.1374mm |
0.050in 1.27mm |
| NR308-420A-XXX/AL | 3.250in 82.55mm |
4.625in 117.475mm |
3.250in 82.55mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR308-508A-XXX/AL | 3.250in 82.55mm |
5.250in 133.35mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR308-508C-XXX/AL | 3.250in 82.55mm |
5.250in 133.35mm |
6.000in 152.4mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.050in 1.27mm |
| NR308-1016A-XXX/AL | 3.250in 82.55mm |
10.500in 266.7mm |
4.625in 117.475mm |
0.218in 5.5372mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR309.5-516C-XXX/AL | 3.297in 83.7438mm |
5.500in 139.7mm |
1.000in 25.4mm |
0.093in 2.3622mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR311-403A-XXX/AL | 3.343in 84.9122mm |
4.093in 103.9622mm |
6.500in 165.1mm |
0.250in 6.35mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR312-420A-XXX/AL | 3.375in 85.725mm |
4.625in 117.475mm |
3.625in 92.075mm |
0.156in 3.9624mm |
0.281in 7.1374mm |
0.040in 1.016mm |
| NR312-420B-XXX/AL | 3.375in 85.725mm |
4.625in 117.475mm |
3.625in 92.075mm |
0.250in 6.35mm |
0.281in 7.1374mm |
0.040in 1.016mm |
| NR312-500A-XXX/AL | 3.375in 85.725mm |
5.000in 127mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.330in 8.382mm |
0.050in 1.27mm |
| NR312-509.5A-XXX/AL | 3.375in 85.725mm |
5.296in 134.5184mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.328in 8.3312mm |
0.090in 2.286mm |
| NR312-604A-XXX/AL | 3.375in 85.725mm |
6.125in 155.575mm |
3.000in 76.2mm |
0.250in 6.35mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR316-319A-XXX/AL | 3.500in 88.9mm |
3.593in 91.2622mm |
3.500in 88.9mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR316-400A-XXX/AL | 3.500in 88.9mm |
4.000in 101.6mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-400B-XXX/AL | 3.500in 88.9mm |
4.000in 101.6mm |
3.500in 88.9mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-406A-XXX/AL | 3.500in 88.9mm |
4.187in 106.3498mm |
2.750in 69.85mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-416A-XXX/AL | 3.500in 88.9mm |
4.500in 114.3mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-416B-XXX/AL | 3.500in 88.9mm |
4.500in 114.3mm |
3.500in 88.9mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-424A-XXX/AL | 3.500in 88.9mm |
4.750in 120.65mm |
3.000in 76.2mm |
0.156in 3.9624mm |
0.200in 5.08mm |
0.050in 1.27mm |
| NR316-500A-XXX/AL | 3.500in 88.9mm |
5.000in 127mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-500B-XXX/AL | 3.500in 88.9mm |
5.000in 127mm |
3.500in 88.9mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-508A-XXX/AL | 3.500in 88.9mm |
5.250in 133.35mm |
3.750in 95.25mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR316-508B-XXX/AL | 3.500in 88.9mm |
5.250in 133.35mm |
3.750in 95.25mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR316-516A-XXX/AL | 3.500in 88.9mm |
5.500in 139.7mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR316-516C-XXX/AL | 3.500in 88.9mm |
5.500in 139.7mm |
0.500in 12.7mm |
0.062in 1.5748mm |
0.156in 3.9624mm |
0.063in 1.6002mm |
| NR316-516D-XXX/AL | 3.500in 88.9mm |
5.500in 139.7mm |
1.250in 31.75mm |
0.093in 2.3622mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR316-600A-XXX/AL | 3.500in 88.9mm |
6.000in 152.4mm |
3.000in 76.2mm |
0.187in 4.7498mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR316-600B-XXX/AL | 3.500in 88.9mm |
6.000in 152.4mm |
3.500in 88.9mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR316-616A-XXX/AL | 3.500in 88.9mm |
6.500in 165.1mm |
3.250in 82.55mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR316-616B-XXX/AL | 3.500in 88.9mm |
6.500in 165.1mm |
3.250in 82.55mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR316-616C-XXX/AL | 3.500in 88.9mm |
6.500in 165.1mm |
1.812in 46.0248mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR316-724A-XXX/AL | 3.500in 88.9mm |
7.750in 196.85mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR316-900A-XXX/AL | 3.500in 88.9mm |
9.000in 228.6mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR318-430A-XXX/AL | 3.562in 90.4748mm |
4.937in 125.3998mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.375in 9.525mm |
0.063in 1.6002mm |
| NR318.5-400A-XXX/AL | 3.578in 90.8812mm |
4.000in 101.6mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.218in 5.5372mm |
0.040in 1.016mm |
| NR319-1100A-XXX/AL | 3.593in 91.2622mm |
11.000in 279.4mm |
3.250in 82.55mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR319-1100B-XXX/AL | 3.593in 91.2622mm |
11.000in 279.4mm |
3.250in 82.55mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR320-408A-XXX/AL | 3.625in 92.075mm |
4.250in 107.95mm |
6.125in 155.575mm |
0.187in 4.7498mm |
0.344in 8.7376mm |
0.040in 1.016mm |
| NR320-520A-XXX/AL | 3.625in 92.075mm |
5.625in 142.875mm |
1.000in 25.4mm |
0.063in 1.6002mm |
0.281in 7.1374mm |
0.063in 1.6002mm |
| NR320-824A-XXX/AL | 3.625in 92.075mm |
8.750in 222.25mm |
3.562in 90.4748mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.050in 1.27mm |
| NR321-605A-XXX/AL | 3.656in 92.8624mm |
6.156in 156.3624mm |
3.562in 90.4748mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR322-524A-XXX/AL | 3.687in 93.6498mm |
5.750in 146.05mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR323.5-509A-XXX/AL | 3.734in 94.8436mm |
5.281in 134.1374mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.340in 8.636mm |
0.063in 1.6002mm |
| NR323.5-509B-XXX/AL | 3.734in 94.8436mm |
5.281in 134.1374mm |
0.625in 15.875mm |
0.062in 1.5748mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR324-416A-XXX/AL | 3.750in 95.25mm |
4.500in 114.3mm |
3.750in 95.25mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR324-416B-XXX/AL | 3.750in 95.25mm |
4.500in 114.3mm |
3.750in 95.25mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR324-424A-XXX/AL | 3.750in 95.25mm |
4.750in 120.65mm |
3.250in 82.55mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR324-500A-XXX/AL | 3.750in 95.25mm |
5.000in 127mm |
5.000in 127mm |
0.188in 4.7752mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR324-500B-XXX/AL | 3.750in 95.25mm |
5.000in 127mm |
5.000in 127mm |
0.312in 7.9248mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR324-728A-XXX/AL | 3.750in 95.25mm |
7.875in 200.025mm |
3.750in 95.25mm |
0.275in 6.985mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR326-1005A-XXX/AL | 3.812in 96.8248mm |
10.156in 257.9624mm |
1.812in 46.0248mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR327-419A-XXX/AL | 3.843in 97.6122mm |
4.593in 116.6622mm |
2.375in 60.325mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR327-419B-XXX/AL | 3.843in 97.6122mm |
4.593in 116.6622mm |
3.500in 88.9mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR327.5-431.5A-XXX/AL | 3.859in 98.0186mm |
4.984in 126.5936mm |
3.500in 88.9mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR327.5-431.5B-XXX/AL | 3.859in 98.0186mm |
4.984in 126.5936mm |
3.250in 82.55mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR328-528A-XXX/AL | 3.875in 98.425mm |
5.875in 149.225mm |
3.000in 76.2mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR328-528B-XXX/AL | 3.875in 98.425mm |
5.875in 149.225mm |
3.000in 76.2mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR329-501A-XXX/AL | 3.906in 99.2124mm |
5.031in 127.7874mm |
3.500in 88.9mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR329-600.5-XXX/AL | 3.906in 99.2124mm |
6.015in 152.781mm |
3.000in 76.2mm |
0.190in 4.826mm |
0.190in 4.826mm |
0.063in 1.6002mm |
| NR329-601C-XXX/AL | 3.906in 99.2124mm |
6.031in 153.1874mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR330.5-600A-XX/AL | 3.953in 100.4062mm |
6.000in 152.4mm |
0.000in 0mm |
0.000in 0mm |
0.000in 0mm |
0.063in 1.6002mm |
| NR331-431A-XXX/AL | 3.968in 100.7872mm |
4.968in 126.1872mm |
3.750in 95.25mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.040in 1.016mm |
| NR400-408A-XXX/AL | 4.000in 101.6mm |
4.250in 107.95mm |
4.250in 107.95mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-416A-XXX/AL | 4.000in 101.6mm |
4.500in 114.3mm |
4.250in 107.95mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-424A-XXX/AL | 4.000in 101.6mm |
4.750in 120.65mm |
4.000in 101.6mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-500A-XXX/AL | 4.000in 101.6mm |
5.000in 127mm |
4.000in 101.6mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-500B-XXX/AL | 4.000in 101.6mm |
5.000in 127mm |
3.500in 88.9mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-500C-XXX/AL | 4.000in 101.6mm |
5.000in 127mm |
3.500in 88.9mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR400-500D-XXX/AL | 4.000in 101.6mm |
5.000in 127mm |
5.750in 146.05mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-500E-XXX/AL | 4.000in 101.6mm |
5.000in 127mm |
3.000in 76.2mm |
0.093in 2.3622mm |
0.125in 3.175mm |
0.040in 1.016mm |
| NR400-508B-XXX/AL | 4.000in 101.6mm |
5.000in 127mm |
4.000in 101.6mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR400-508A-XXX/AL | 4.000in 101.6mm |
5.250in 133.35mm |
4.000in 101.6mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR400-512A-XXX/BR | 4.000in 101.6mm |
5.375in 136.525mm |
6.000in 152.4mm |
0.437in 11.0998mm |
0.347in 8.8138mm |
0.050in 1.27mm |
| NR400-600A-XXX/AL | 4.000in 101.6mm |
6.000in 152.4mm |
3.750in 95.25mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-600B-XXX/AL | 4.000in 101.6mm |
6.000in 152.4mm |
3.750in 95.25mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-600C-XXX/AL | 4.000in 101.6mm |
6.000in 152.4mm |
3.750in 95.25mm |
0.250in 6.35mm |
0.266in 6.7564mm |
0.040in 1.016mm |
| NR400-600E-XXX/AL | 4.000in 101.6mm |
6.000in 152.4mm |
2.312in 58.7248mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.032in 0.8128mm |
| NR400-608A-XXX/AL | 4.000in 101.6mm |
6.250in 158.75mm |
4.250in 107.95mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-616A-XXX/AL | 4.000in 101.6mm |
6.500in 165.1mm |
4.250in 107.95mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-616B-XXX/AL | 4.000in 101.6mm |
6.500in 165.1mm |
4.250in 107.95mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-616D-XXX/AL | 4.000in 101.6mm |
6.500in 165.1mm |
2.500in 63.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.125in 3.175mm |
| NR400-616E-XXX/AL | 4.000in 101.6mm |
6.500in 165.1mm |
4.000in 101.6mm |
0.125in 3.175mm |
0.323in 8.2042mm |
0.050in 1.27mm |
| NR400-700A-XXX/AL | 4.000in 101.6mm |
7.000in 177.8mm |
4.625in 117.475mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-700B-XXX/AL | 4.000in 101.6mm |
7.000in 177.8mm |
3.750in 95.25mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-700C-XXX/AL | 4.000in 101.6mm |
7.000in 177.8mm |
4.625in 117.475mm |
0.375in 9.525mm |
0.750in 19.05mm |
0.063in 1.6002mm |
| NR400-700E-XXX/AL | 4.000in 101.6mm |
7.000in 177.8mm |
0.406in 10.3124mm |
0.031in 0.7874mm |
0.520in 13.208mm |
0.040in 1.016mm |
| NR400-800A-XXX/AL | 4.000in 101.6mm |
8.000in 203.2mm |
4.000in 101.6mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-800B-XXX/AL | 4.000in 101.6mm |
8.000in 203.2mm |
4.000in 101.6mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR400-824A-XXX/AL | 4.000in 101.6mm |
8.750in 222.25mm |
3.750in 95.25mm |
0.187in 4.7498mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-824B-XXX/AL | 4.000in 101.6mm |
8.750in 222.25mm |
4.000in 101.6mm |
0.312in 7.9248mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-900A-XXX/AL | 4.000in 101.6mm |
9.000in 228.6mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR400-900B-XXX/AL | 4.000in 101.6mm |
9.000in 228.6mm |
4.500in 114.3mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR402-425.5S-ARINC | 4.062in 103.1748mm |
4.796in 121.8184mm |
6.500in 165.1mm |
0.250in 6.35mm |
0.093in 2.3622mm |
0.050in 1.27mm |
| NR403-426.5-ARINC | 4.090in 103.886mm |
4.828in 122.6312mm |
6.500in 165.1mm |
0.250in 6.35mm |
0.093in 2.3622mm |
0.063in 1.6002mm |
| NR404-624A-XXX/AL | 4.125in 104.775mm |
6.750in 171.45mm |
3.750in 95.25mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR405-419A-XXX/AL | 4.156in 105.5624mm |
4.593in 116.6622mm |
5.375in 136.525mm |
0.188in 4.7752mm |
0.375in 9.525mm |
0.040in 1.016mm |
| NR406-706A-XXX/AL | 4.187in 106.3498mm |
7.187in 182.5498mm |
4.000in 101.6mm |
0.312in 7.9248mm |
0.343in 8.7122mm |
0.063in 1.6002mm |
| NR406.1-525.6A-XXX/AL | 4.190in 106.426mm |
5.800in 147.32mm |
3.000in 76.2mm |
0.250in 6.35mm |
0.312in 7.9248mm |
0.090in 2.286mm |
| NR408-522A-XXX/AL | 4.250in 107.95mm |
5.687in 144.4498mm |
5.250in 133.35mm |
0.312in 7.9248mm |
0.625in 15.875mm |
0.050in 1.27mm |
| NR408-600A-XXX/AL | 4.250in 107.95mm |
6.000in 152.4mm |
1.875in 47.625mm |
0.125in 3.175mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR409-801A-XXX/AL | 4.281in 108.7374mm |
8.031in 203.9874mm |
4.500in 114.3mm |
0.500in 12.7mm |
0.343in 8.7122mm |
0.050in 1.27mm |
| NR410-502A-XXX/AL | 4.312in 109.5248mm |
5.062in 128.5748mm |
5.750in 146.05mm |
0.250in 6.35mm |
0.375in 9.525mm |
0.063in 1.6002mm |
| NR410-700A-XXX/AL | 4.312in 109.5248mm |
7.000in 177.8mm |
4.000in 101.6mm |
0.156in 3.9624mm |
0.281in 7.1374mm |
0.050in 1.27mm |
| NR410-700C-XXX/AL | 4.312in 109.5248mm |
7.000in 177.8mm |
3.625in 92.075mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.090in 2.286mm |
| NR411.4-601.3A-XXX/AL | 4.356in 110.6424mm |
6.040in 153.416mm |
4.875in 123.825mm |
0.687in 17.4498mm |
0.687in 17.4498mm |
0.063in 1.6002mm |
| NR412-500A-XXX/AL | 4.375in 111.125mm |
5.000in 127mm |
4.250in 107.95mm |
0.188in 4.7752mm |
0.250in 6.35mm |
0.040in 1.016mm |
| NR412-516A-XXX/AL | 4.375in 111.125mm |
5.500in 139.7mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR412-516B-XXX/AL | 4.375in 111.125mm |
5.500in 139.7mm |
4.500in 114.3mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR412-528A-XXX/AL | 4.375in 111.125mm |
5.875in 149.225mm |
4.625in 117.475mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR412-602A-XXX/AL | 4.375in 111.125mm |
6.062in 153.9748mm |
4.000in 101.6mm |
0.687in 17.4498mm |
0.687in 17.4498mm |
0.063in 1.6002mm |
| NR412-612A-XXX/AL | 4.375in 111.125mm |
6.375in 161.925mm |
6.000in 152.4mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR412.8-512A-XXX/AL | 4.400in 111.76mm |
5.375in 136.525mm |
8.200in 208.28mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR414-514A-XXX/AL | 4.437in 112.6998mm |
5.347in 135.8138mm |
3.750in 95.25mm |
0.188in 4.7752mm |
0.375in 9.525mm |
0.040in 1.016mm |
| NR414-816A-XXX/AL | 4.437in 112.6998mm |
8.500in 215.9mm |
4.250in 107.95mm |
0.250in 6.35mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR415.5-731.5A-XXX/AL | 4.484in 113.8936mm |
7.984in 202.7936mm |
3.625in 92.075mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR416-500A-XXX/AL | 4.500in 114.3mm |
5.000in 127mm |
4.500in 114.3mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR416-500B-XXX/AL | 4.500in 114.3mm |
5.000in 127mm |
4.500in 114.3mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR416-600A-XXX/AL | 4.500in 114.3mm |
6.000in 152.4mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR416-600B-XXX/AL | 4.500in 114.3mm |
6.000in 152.4mm |
4.500in 114.3mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR416-600C-XXX/AL | 4.500in 114.3mm |
6.000in 152.4mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.156in 3.9624mm |
0.063in 1.6002mm |
| NR416-712A-XXX/AL | 4.500in 114.3mm |
7.375in 187.325mm |
4.000in 101.6mm |
0.188in 4.7752mm |
0.187in 4.7498mm |
0.063in 1.6002mm |
| NR416-716A-XXX/AL | 4.500in 114.3mm |
7.500in 190.5mm |
2.125in 53.975mm |
0.156in 3.9624mm |
0.218in 5.5372mm |
0.063in 1.6002mm |
| NR416-724A-XXX/AL | 4.500in 114.3mm |
7.750in 196.85mm |
4.750in 120.65mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR416-824A-XXX/AL | 4.500in 114.3mm |
8.750in 222.25mm |
3.000in 76.2mm |
0.440in 11.176mm |
0.375in 9.525mm |
0.048in 1.2192mm |
| NR416.5-622.5A-XXX/AL | 4.515in 114.681mm |
6.702in 170.2308mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR417.5-817.5-XXX/AL | 4.550in 115.57mm |
8.550in 217.17mm |
4.250in 107.95mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR420-626.5A-XXX/AL | 4.625in 117.475mm |
6.827in 173.4058mm |
4.625in 117.475mm |
0.250in 6.35mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR420-724A-XXX/AL | 4.625in 117.475mm |
7.750in 196.85mm |
3.750in 95.25mm |
0.125in 3.175mm |
0.203in 5.1562mm |
0.050in 1.27mm |
| NR420-724B-XXX/AL | 4.625in 117.475mm |
7.750in 196.85mm |
3.750in 95.25mm |
0.250in 6.35mm |
0.203in 5.1562mm |
0.050in 1.27mm |
| NR423.5-531.5A-XXX/AL | 4.733in 120.2182mm |
5.984in 151.9936mm |
1.000in 25.4mm |
0.125in 3.175mm |
0.218in 5.5372mm |
0.032in 0.8128mm |
| NR423.5-531.5C-XX/AL | 4.737in 120.3198mm |
5.984in 151.9936mm |
3.000in 76.2mm |
0.156in 3.9624mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR424-500A-XXX/AL | 4.750in 120.65mm |
5.000in 127mm |
3.500in 88.9mm |
0.156in 3.9624mm |
0.156in 3.9624mm |
0.040in 1.016mm |
| NR424-511A-XXX/AL | 4.750in 120.65mm |
5.343in 135.7122mm |
6.156in 156.3624mm |
0.438in 11.1252mm |
0.625in 15.875mm |
0.040in 1.016mm |
| NR424-600A-XXX/AL | 4.750in 120.65mm |
6.000in 152.4mm |
4.937in 125.3998mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR424-600C-XXX/AL | 4.750in 120.65mm |
6.000in 152.4mm |
3.500in 88.9mm |
0.125in 3.175mm |
0.219in 5.5626mm |
0.040in 1.016mm |
| NR424-600D-XXX/AL | 4.750in 120.65mm |
6.000in 152.4mm |
4.937in 125.3998mm |
0.250in 6.35mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR424-620A-XXX/AL | 4.750in 120.65mm |
6.625in 168.275mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR424-620B-XXX/AL | 4.750in 120.65mm |
6.625in 168.275mm |
4.750in 120.65mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR424-916A-XXX/AL | 4.750in 120.65mm |
9.500in 241.3mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR424-1024A-XXX/AL | 4.750in 120.65mm |
10.750in 273.05mm |
4.500in 114.3mm |
0.375in 9.525mm |
0.375in 9.525mm |
0.063in 1.6002mm |
| NR424-1024B-XXX/AL | 4.750in 120.65mm |
10.750in 273.05mm |
4.500in 114.3mm |
0.188in 4.7752mm |
0.375in 9.525mm |
0.063in 1.6002mm |
| NR425-511A-XXX/AL | 4.781in 121.4374mm |
5.343in 135.7122mm |
6.156in 156.3624mm |
0.438in 11.1252mm |
0.625in 15.875mm |
0.040in 1.016mm |
| NR425-826A-XXX/AL | 4.781in 121.4374mm |
8.812in 223.8248mm |
2.406in 61.1124mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR428-616A-XXX/AL | 4.875in 123.825mm |
6.500in 165.1mm |
4.500in 114.3mm |
0.312in 7.9248mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR500-516A-XXX/AL | 5.000in 127mm |
5.500in 139.7mm |
5.000in 127mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-516B-XXX/AL | 5.000in 127mm |
5.500in 139.7mm |
5.000in 127mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-600A-XXX/AL | 5.000in 127mm |
6.000in 152.4mm |
5.000in 127mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-600B-XXX/AL | 5.000in 127mm |
6.000in 152.4mm |
5.000in 127mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-700A-XXX/AL | 5.000in 127mm |
7.000in 177.8mm |
5.250in 133.35mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-700B-XXX/AL | 5.000in 127mm |
7.000in 177.8mm |
5.250in 133.35mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-712A-XXX/AL | 5.000in 127mm |
7.375in 187.325mm |
2.000in 50.8mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR500-712B-XXX/AL | 5.000in 127mm |
7.375in 187.325mm |
7.000in 177.8mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR500-716C-XXX/AL | 5.000in 127mm |
7.500in 190.5mm |
3.500in 88.9mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.050in 1.27mm |
| NR500-800B-XXX/AL | 5.000in 127mm |
8.000in 203.2mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR500-800C-XXX/AL | 5.000in 127mm |
8.000in 203.2mm |
4.500in 114.3mm |
0.250in 6.35mm |
0.270in 6.858mm |
0.040in 1.016mm |
| NR500-813A-XXX/AL | 5.000in 127mm |
8.406in 213.5124mm |
5.000in 127mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR500-900A-XXX/AL | 5.000in 127mm |
9.000in 228.6mm |
4.750in 120.65mm |
0.250in 6.35mm |
0.375in 9.525mm |
0.050in 1.27mm |
| NR500-900B-XXX/AL | 5.000in 127mm |
9.000in 228.6mm |
5.000in 127mm |
0.375in 9.525mm |
0.375in 9.525mm |
0.050in 1.27mm |
| NR502-626C-XXX/AL | 5.062in 128.5748mm |
6.812in 173.0248mm |
2.125in 53.975mm |
0.031in 0.7874mm |
0.468in 11.8872mm |
0.032in 0.8128mm |
| NRS5025-521.5A | 5.080in 129.032mm |
5.670in 144.018mm |
0.000in 0mm |
0.093in 2.3622mm |
0.093in 2.3622mm |
0.020in 0.508mm |
| NR503.5-523A-XXX/AL | 5.109in 129.7686mm |
5.718in 145.2372mm |
1.625in 41.275mm |
0.125in 3.175mm |
0.250in 6.35mm |
0.020in 0.508mm |
| NR505-517A-XXX/AL | 5.156in 130.9624mm |
5.531in 140.4874mm |
5.000in 127mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR506-800A-XXX/AL | 5.187in 131.7498mm |
8.000in 203.2mm |
4.250in 107.95mm |
0.250in 6.35mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR506-800B-XXX/AL | 5.187in 131.7498mm |
8.000in 203.2mm |
4.250in 107.95mm |
0.312in 7.9248mm |
0.156in 3.9624mm |
0.050in 1.27mm |
| NR508-1100A-XXX/AL | 5.250in 133.35mm |
11.000in 279.4mm |
5.000in 127mm |
0.200in 5.08mm |
0.200in 5.08mm |
0.050in 1.27mm |
| NR508-1128A-XXX/AL | 5.250in 133.35mm |
11.875in 301.625mm |
5.250in 133.35mm |
0.500in 12.7mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR509-910C-XXX/AL | 5.281in 134.1374mm |
9.312in 236.5248mm |
0.437in 11.0998mm |
0.090in 2.286mm |
0.437in 11.0998mm |
0.063in 1.6002mm |
| NR511-615A-XXX/AL | 5.343in 135.7122mm |
6.468in 164.2872mm |
4.750in 120.65mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR512-806.5A-XXX/AL | 5.375in 136.525mm |
8.200in 208.28mm |
6.000in 152.4mm |
0.000in 0mm |
0.000in 0mm |
0.063in 1.6002mm |
| NR512-1713.5A-XXX/AL | 5.375in 136.525mm |
17.421in 442.4934mm |
3.250in 82.55mm |
0.380in 9.652mm |
0.380in 9.652mm |
0.063in 1.6002mm |
| NR515.5-607.5A-XXX/AL | 5.483in 139.2682mm |
6.233in 158.3182mm |
4.250in 107.95mm |
0.187in 4.7498mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR516-700A-XXX/AL | 5.500in 139.7mm |
7.000in 177.8mm |
5.500in 139.7mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR516-800A-XXX/AL | 5.500in 139.7mm |
8.000in 203.2mm |
5.000in 127mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR516-800B-XXX/AL | 5.500in 139.7mm |
8.000in 203.2mm |
5.000in 127mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR516-920A-XXX/AL | 5.500in 139.7mm |
9.625in 244.475mm |
4.750in 120.65mm |
0.375in 9.525mm |
0.375in 9.525mm |
0.063in 1.6002mm |
| NR518-600A-XXX/AL | 5.562in 141.2748mm |
6.000in 152.4mm |
4.000in 101.6mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR518-829A-XXX/AL | 5.562in 141.2748mm |
8.906in 226.2124mm |
5.500in 139.7mm |
0.144in 3.6576mm |
0.144in 3.6576mm |
0.063in 1.6002mm |
| NR518-928C-XXX/AL | 5.562in 141.2748mm |
9.875in 250.825mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR520-720A-XXX/AL | 5.625in 142.875mm |
7.625in 193.675mm |
5.000in 127mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR520-720B-XXX/AL | 5.625in 142.875mm |
7.625in 193.675mm |
5.000in 127mm |
0.375in 9.525mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR522.5-602.5A-XXX/AL | 5.703in 144.8562mm |
6.078in 154.3812mm |
5.500in 139.7mm |
0.250in 6.35mm |
0.750in 19.05mm |
0.090in 2.286mm |
| NR524-624A-XXX/AL | 5.750in 146.05mm |
6.750in 171.45mm |
5.500in 139.7mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR524-624B-XXX/AL | 5.750in 146.05mm |
6.750in 171.45mm |
5.500in 139.7mm |
0.188in 4.7752mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR524-824A-XXX/AL | 5.750in 146.05mm |
8.750in 222.25mm |
3.500in 88.9mm |
0.250in 6.35mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR526.5-604C-XXX/AL | 5.827in 148.0058mm |
6.125in 155.575mm |
0.375in 9.525mm |
0.093in 2.3622mm |
0.125in 3.175mm |
0.063in 1.6002mm |
| NR528-624A-XXX/AL | 5.875in 149.225mm |
6.750in 171.45mm |
4.000in 101.6mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR528-700A-XXX/AL | 5.875in 149.225mm |
7.000in 177.8mm |
5.000in 127mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR600-700A-XXX/AL | 6.000in 152.4mm |
7.000in 177.8mm |
5.500in 139.7mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-700B-XXX/AL | 6.000in 152.4mm |
7.000in 177.8mm |
5.500in 139.7mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-716A-XXX/AL | 6.000in 152.4mm |
7.500in 190.5mm |
5.000in 127mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-716B-XXX/AL | 6.000in 152.4mm |
7.500in 190.5mm |
5.000in 127mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-800A-XXX/AL | 6.000in 152.4mm |
8.000in 203.2mm |
6.125in 155.575mm |
0.375in 9.525mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-800B-XXX/AL | 6.000in 152.4mm |
8.000in 203.2mm |
5.500in 139.7mm |
0.250in 6.35mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-900A-XXX/AL | 6.000in 152.4mm |
9.000in 228.6mm |
6.000in 152.4mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-900B-XXX/AL | 6.000in 152.4mm |
9.000in 228.6mm |
6.000in 152.4mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR600-900C-XXX/AL | 6.000in 152.4mm |
9.000in 228.6mm |
6.000in 152.4mm |
0.288in 7.3152mm |
0.288in 7.3152mm |
0.090in 2.286mm |
| NR600-900D-XXX/AL | 6.000in 152.4mm |
9.000in 228.6mm |
6.000in 152.4mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.090in 2.286mm |
| NR600-1200A-XXX/AL | 6.000in 152.4mm |
12.000in 304.8mm |
6.000in 152.4mm |
0.500in 12.7mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR600-1200C-XXX/AL | 6.000in 152.4mm |
12.000in 304.8mm |
3.000in 76.2mm |
0.125in 3.175mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR600-1316A-XXX/AL | 6.000in 152.4mm |
13.500in 342.9mm |
5.750in 146.05mm |
0.500in 12.7mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR612-906A-XXX/AL | 6.375in 161.925mm |
9.187in 233.3498mm |
5.500in 139.7mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR612-906B-XXX/AL | 6.375in 161.925mm |
9.187in 233.3498mm |
5.500in 139.7mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR612-1000A-XXX/AL | 6.375in 161.925mm |
10.000in 254mm |
5.000in 127mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR616-816A-XXX/AL | 6.500in 165.1mm |
8.500in 215.9mm |
5.000in 127mm |
0.187in 4.7498mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR616-912A-XXX/AL | 6.500in 165.1mm |
9.375in 238.125mm |
5.250in 133.35mm |
0.250in 6.35mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR624-625A-XXX/AL | 6.750in 171.45mm |
6.781in 172.2374mm |
2.500in 63.5mm |
0.187in 4.7498mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR628-812A-XXX/AL | 6.875in 174.625mm |
8.375in 212.725mm |
6.000in 152.4mm |
0.312in 7.9248mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR628-812B-XXX/AL | 6.875in 174.625mm |
8.375in 212.725mm |
6.000in 152.4mm |
0.375in 9.525mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR631-715.4A-XXX/AL | 6.970in 177.038mm |
7.481in 190.0174mm |
3.286in 83.4644mm |
0.170in 4.318mm |
0.170in 4.318mm |
0.050in 1.27mm |
| NR700-800A-XXX/AL | 7.000in 177.8mm |
8.000in 203.2mm |
6.000in 152.4mm |
0.312in 7.9248mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR700-800B-XXX/AL | 7.000in 177.8mm |
8.000in 203.2mm |
6.000in 152.4mm |
0.437in 11.0998mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR700-900A-XXX/AL | 7.000in 177.8mm |
9.000in 228.6mm |
7.000in 177.8mm |
0.437in 11.0998mm |
0.437in 11.0998mm |
0.063in 1.6002mm |
| NR700-900B-XXX/AL | 7.000in 177.8mm |
9.000in 228.6mm |
7.000in 177.8mm |
0.250in 6.35mm |
0.437in 11.0998mm |
0.063in 1.6002mm |
| NR700-900C-XXX/AL | 7.000in 177.8mm |
9.000in 228.6mm |
5.000in 127mm |
0.250in 6.35mm |
0.453in 11.5062mm |
0.040in 1.016mm |
| NR700-1100A-XXX/AL | 7.000in 177.8mm |
11.000in 279.4mm |
6.500in 165.1mm |
0.250in 6.35mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR700-1100B-XXX/AL | 7.000in 177.8mm |
11.000in 279.4mm |
6.500in 165.1mm |
0.500in 12.7mm |
0.312in 7.9248mm |
0.063in 1.6002mm |
| NR700-1216A-XXX/AL | 7.000in 177.8mm |
12.500in 317.5mm |
4.000in 101.6mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.063in 1.6002mm |
| NR702-1018A-XXX/AL | 7.062in 179.3748mm |
10.562in 268.2748mm |
9.000in 228.6mm |
0.750in 19.05mm |
0.750in 19.05mm |
0.063in 1.6002mm |
| NR704-920A-XXX/AL | 7.125in 180.975mm |
9.625in 244.475mm |
5.000in 127mm |
0.312in 7.9248mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR706-1800A-XXX/AL | 7.187in 182.5498mm |
18.000in 457.2mm |
7.000in 177.8mm |
0.440in 11.176mm |
0.500in 12.7mm |
0.090in 2.286mm |
| NR712-912C-XXX/AL | 7.375in 187.325mm |
9.375in 238.125mm |
0.500in 12.7mm |
0.030in 0.762mm |
0.560in 14.224mm |
0.063in 1.6002mm |
| NR714-914AXXX/AL | 7.437in 188.8998mm |
9.437in 239.6998mm |
3.500in 88.9mm |
0.125in 3.175mm |
0.625in 15.875mm |
0.063in 1.6002mm |
| NR716-804A-XXX/AL | 7.500in 190.5mm |
8.125in 206.375mm |
7.125in 180.975mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.050in 1.27mm |
| NR716-804B-XXX/AL | 7.500in 190.5mm |
8.125in 206.375mm |
7.500in 190.5mm |
0.250in 6.35mm |
0.239in 6.0706mm |
0.063in 1.6002mm |
| NR716-1200A-XXX/AL | 7.500in 190.5mm |
12.000in 304.8mm |
5.000in 127mm |
0.250in 6.35mm |
0.750in 19.05mm |
0.090in 2.286mm |
| NR724-1016A-XXX/AL | 7.750in 196.85mm |
10.500in 266.7mm |
7.500in 190.5mm |
0.500in 12.7mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR800-900A-XXX/AL | 8.000in 203.2mm |
9.000in 228.6mm |
5.500in 139.7mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR800-900B-XXX/AL | 8.000in 203.2mm |
9.000in 228.6mm |
5.500in 139.7mm |
0.375in 9.525mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR800-1000A-XXX/AL | 8.000in 203.2mm |
10.000in 254mm |
7.500in 190.5mm |
0.437in 11.0998mm |
0.437in 11.0998mm |
0.063in 1.6002mm |
| NR800-1100A-XXX/AL | 8.000in 203.2mm |
11.000in 279.4mm |
7.500in 190.5mm |
0.875in 22.225mm |
0.875in 22.225mm |
0.063in 1.6002mm |
| NR800-1100C-XXX/AL | 8.000in 203.2mm |
11.000in 279.4mm |
5.750in 146.05mm |
0.500in 12.7mm |
1.000in 25.4mm |
0.063in 1.6002mm |
| NR800-1400A-XXX/AL | 8.000in 203.2mm |
14.000in 355.6mm |
7.250in 184.15mm |
0.875in 22.225mm |
0.875in 22.225mm |
0.063in 1.6002mm |
| NR812-1116A-XXX/AL | 8.375in 212.725mm |
11.500in 292.1mm |
6.000in 152.4mm |
0.500in 12.7mm |
0.560in 14.224mm |
0.063in 1.6002mm |
| NR816-1200A-XXX/AL | 8.500in 215.9mm |
12.000in 304.8mm |
9.000in 228.6mm |
1.000in 25.4mm |
1.000in 25.4mm |
0.063in 1.6002mm |
| NR816-1400A-XXX/AL | 8.500in 215.9mm |
14.000in 355.6mm |
7.500in 190.5mm |
0.250in 6.35mm |
0.250in 6.35mm |
0.063in 1.6002mm |
| NR824-1200A-XXX/AL | 8.750in 222.25mm |
12.000in 304.8mm |
8.000in 203.2mm |
0.500in 12.7mm |
0.750in 19.05mm |
0.063in 1.6002mm |
| NR824-1324A-XXX/AL | 8.750in 222.25mm |
13.750in 349.25mm |
4.250in 107.95mm |
0.500in 12.7mm |
0.750in 19.05mm |
0.090in 2.286mm |
| NR828-1025A-XXX/AL | 8.875in 225.425mm |
10.781in 273.8374mm |
5.500in 139.7mm |
0.125in 3.175mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR904-1204A-XXX/AL | 9.125in 231.775mm |
12.125in 307.975mm |
6.000in 152.4mm |
0.250in 6.35mm |
0.625in 15.875mm |
0.063in 1.6002mm |
| NR906-1308A-XXX/AL | 9.187in 233.3498mm |
13.250in 336.55mm |
9.000in 228.6mm |
0.625in 15.875mm |
0.625in 15.875mm |
0.063in 1.6002mm |
| NR912-1008A-XXX/AL | 9.375in 238.125mm |
10.250in 260.35mm |
2.500in 63.5mm |
0.188in 4.7752mm |
0.188in 4.7752mm |
0.050in 1.27mm |
| NR912-1400A-XXX/AL | 9.375in 238.125mm |
14.000in 355.6mm |
5.000in 127mm |
0.450in 11.43mm |
0.450in 11.43mm |
0.050in 1.27mm |
| NR1000-1200A-XXX/AL | 10.000in 254mm |
12.000in 304.8mm |
8.500in 215.9mm |
1.000in 25.4mm |
1.000in 25.4mm |
0.090in 2.286mm |
| NR1000-1600A-XXX/AL | 10.000in 254mm |
16.000in 406.4mm |
6.000in 152.4mm |
1.000in 25.4mm |
1.000in 25.4mm |
0.090in 2.286mm |
| NR1000-1802A-XXX/AL | 10.000in 254mm |
18.062in 458.7748mm |
6.000in 152.4mm |
1.000in 25.4mm |
1.000in 25.4mm |
0.090in 2.286mm |
| NR1002-1302A-XXX/AL | 10.060in 255.524mm |
13.060in 331.724mm |
9.000in 228.6mm |
0.500in 12.7mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR1006-1206A-XXX/AL | 10.187in 258.7498mm |
12.187in 309.5498mm |
2.500in 63.5mm |
0.187in 4.7498mm |
0.500in 12.7mm |
0.063in 1.6002mm |
| NR1008-1508A-XXX/AL | 10.250in 260.35mm |
15.250in 387.35mm |
9.000in 228.6mm |
0.750in 19.05mm |
0.750in 19.05mm |
0.063in 1.6002mm |
| NR1200-1300B-XXX/AL | 12.000in 304.8mm |
13.000in 330.2mm |
6.250in 158.75mm |
0.500in 12.7mm |
0.500in 12.7mm |
0.090in 2.286mm |
| NR1301-1801A-XXX/AL | 13.032in 331.0128mm |
18.032in 458.0128mm |
5.750in 146.05mm |
0.875in 22.225mm |
1.250in 31.75mm |
0.063in 1.6002mm |
